Concrete / Asphalt Saw Blades

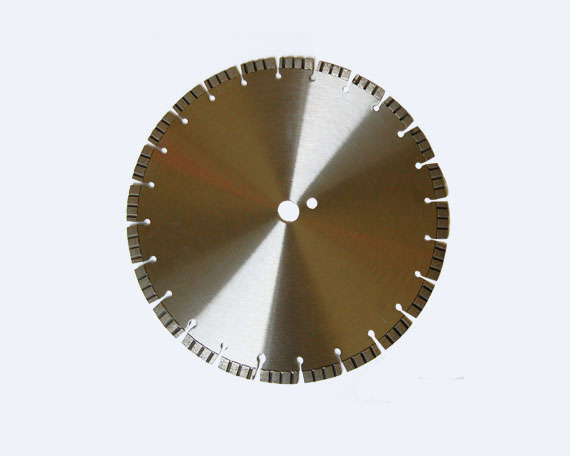

Concrete Diamond Saw Blade With Fast Cutting

Features:

1.Laser welded
2.Turbo wave segments
3.Sharpness
4.Higher cutting speed and efficiency than traditional general purpose types.

Description
Application: for fast cutting of reinforced concrete, concrete, asphalt, bricks and stone.

Machinery: flat saw machine with power more than 35 hp.

Specification


Item No Diameter Arbor Segment Dimension Segment Number
Inches MM MM Thick(MM) Height(MM)
    SDLF-04  4〞 105 16/20/22.23 2.2 8/10/12 8
SDLF-43 4.3〞 110 16/20/22.23 2.2 8/10/12 8
    SDLF-45  4.5〞 115 20/22.23 2.2 8/10/12 9
    SDLF-05  5〞 125 20/22.23 2.2 8/10/12 10
    SDLF-06  6〞 150 20/22.23 2.2 8/10/12 12
    SDLF-07  7〞 180 22.23/25.4 2.4 8/10/12 13
   SDLF-08  8〞 200 22.23/25.4 2.5 8/10/12 14
   SDLF-09  9〞 230 22.23/25.4 2.6 8/10/12 16
   SDLF-10  10〞 250 22.23/25.4 2.8 8/10/12 17
   SDLF-12  12〞 300 25.4 3 8/10/12 20
SDLF-14 14〞 350 25.4 3 8/10/12 24
SDLF-16 16〞 400 25.4 3.2 8/10/12 28
SDLF-18 18〞 450 25.4 3.6 8/10/12 32
    SDLF-20  20〞 500 25.4 3.6 8/10/12 36
SDLF-24 24〞 600 25.4 4 8/10/12 42

Other sizes and specifications are available upon request
