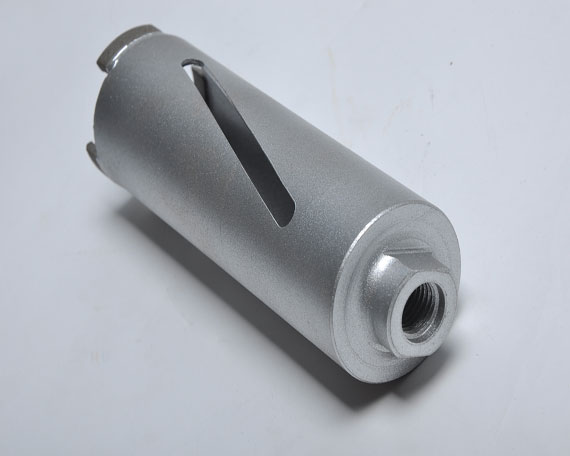

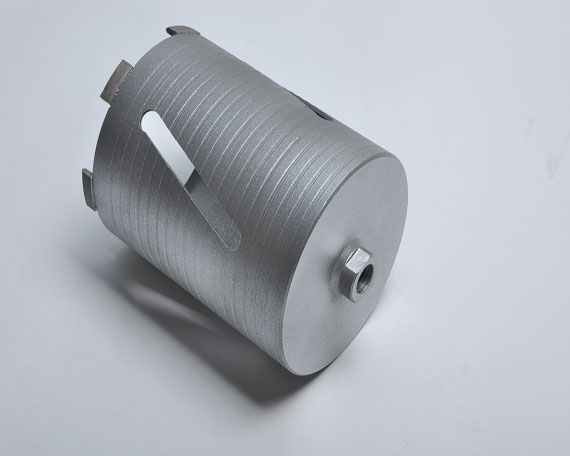

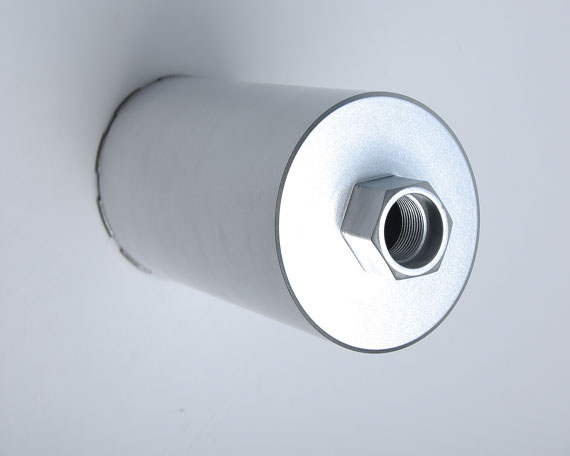

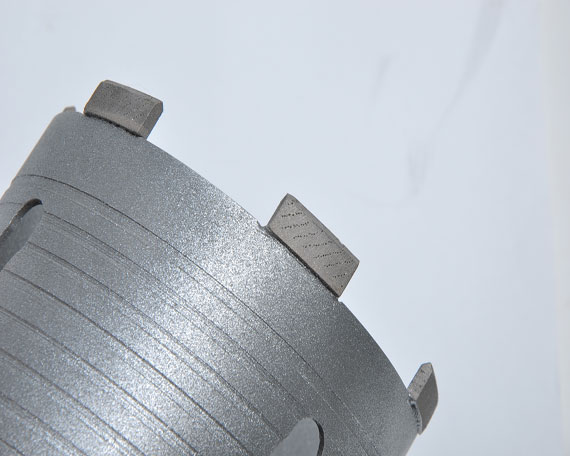

Diamond Arranged Core Bits For Reinforced Concrete
Features:
1. Professionally cutting reinforced concrete
2. Fast drilling, stable performance and long working life
3. High cost-performance ratio
| Type | Dia. (mm) | Segment size(mm) | Tube thickness (mm) | Segment quantity |
| AX-RCB | 25 | 15.3/10.3x10x3.5 | 2.0 | 4 |
| 30 | 17.4/12.3x10x3.5 | 4 | ||
| 35 | 21/15.9x10x3.5 | 4 | ||
| 40 | 24x10x3.5 | 4 | ||
| 45 | 24x10x3.5 | 5 | ||
| 50 | 24x10x3.5 | 5 | ||
| 56 | 24x10x3.5 | 6 | ||
| 60 | 24x10x3.5 | 6 | ||
| 66 | 24x10x3.5 | 6 | ||
| 70 | 24x10x3.5 | 7 | ||
| 76 | 24x10x3.5 | 7 | ||
| 80 | 24x10x3.5 | 7 | ||
| 86 | 24x10x3.5 | 8 | ||
| 90 | 24x10x3.5 | 8 | ||
| 101 | 24x10x3.5 | 9 | ||
| 107 | 24x10x3.5 | 9 | ||
| 112 | 24x10x3.5 | 10 | ||
| 122 | 24x10x3.5 | 10 | ||
| 132 | 24x10x3.5 | 11 | ||
| 143 | 24x10x3.5 | 11 | ||
| 152 | 24x10x4.0 | 2.4 | 12 | |
| 158 | 24x10x4.0 | 12 | ||
| 161 | 24x10x4.0 | 12 | ||
| 171 | 24x10x4.5 | 13 | ||
| 181 | 24x10x4.5 | 14 | ||
| 200 | 24x10x4.5 | 15 | ||
| 218 | 24x10x4.5 | 2.7 | 16 | |
| 225 | 24x10x4.5 | 16 | ||
| 250 | 24x10x5.0 | 17 | ||
| 270 | 24x10x5.0 | 19 | ||
| 300 | 24x10x 5.0 | 3.0 | 21 | |
| 320 | 24x10x5.0 | 23 | ||
| 350 | 24x10x5.0 | 23 |
