Grinding Cup Wheel

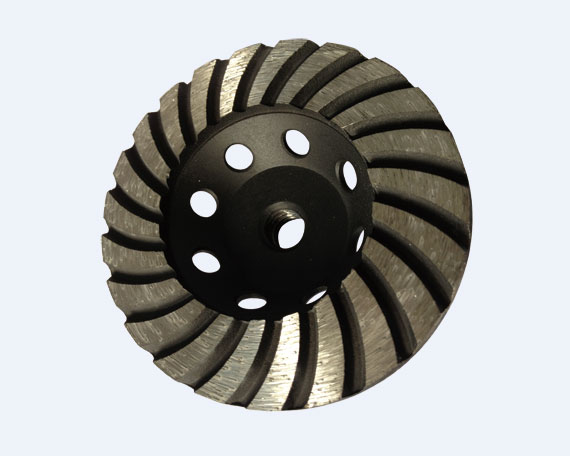

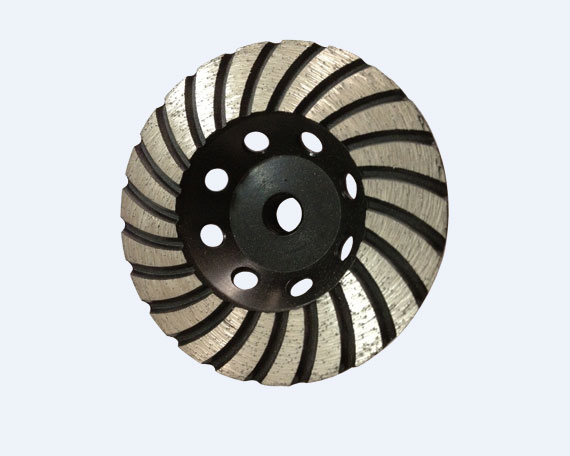

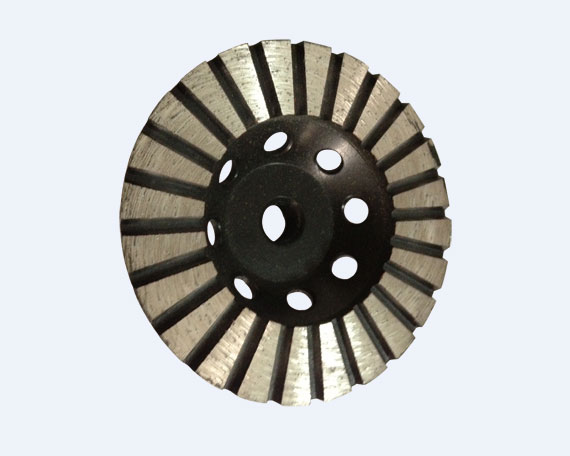

Silver Brazed Turbo Cup Wheel

Features:

Especially suitable for edge leveling, grinding polishing or repair jobs where a smooth finish is required

Description
Application: Granite, marble, concrete products, masonry material and all types of natural stone with maximum stock removal and free cutting action for wet or dry application.

Machinery: Angle grinder.

Specification
Item No Diameter Arbor Segment Dimension(MM)
Inches MM MM W H
SDTW-04 4〞 105 22.23 5 20
SDTW-45 4.5〞 115 22.23 5 20
SDTW-05 5〞 125 22.23 5 20
SDTW-06 6〞 150 22.23 5 20
SDTW-07 7〞 180 22.23 5 24
SDTW-09 9〞 230 22.23 5 30

Different arbor sizes and segment specifications are available upon request
