Electroplated Saw Blades

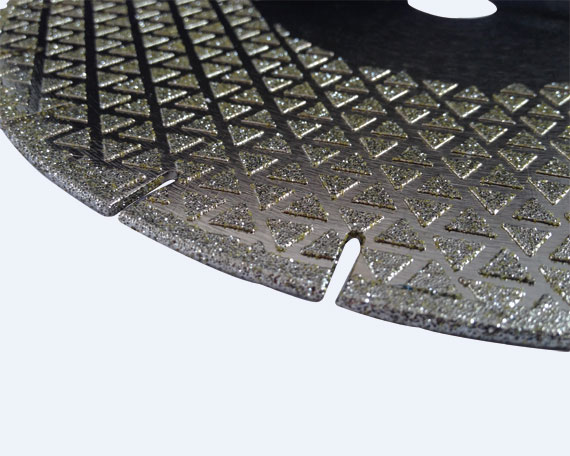

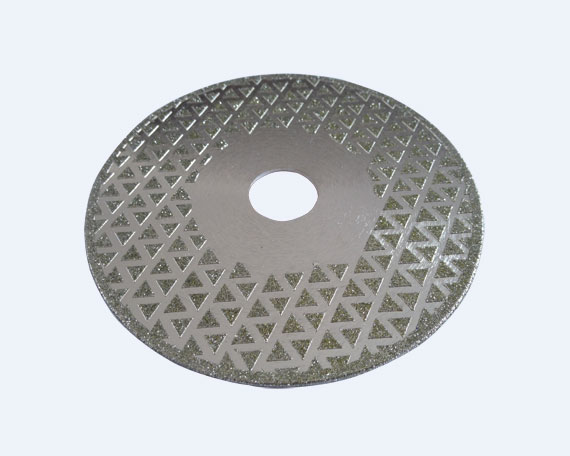

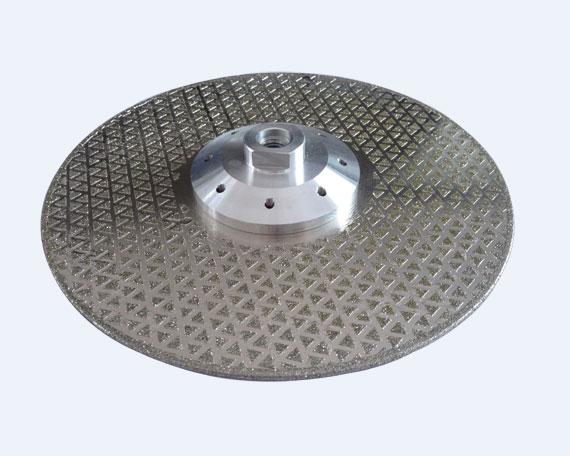

Star Dotted Electroplated Diamond Saw Blade

Features:

1.Very sharp cutting performance and generate minimum heat
2.Very high concentrated diamonds
3.Particularly suitable for beginning cutting operation and dry cutting

Description
Application: For cutting various materials, like marble, granite, sandstone, ceramic,  thermosetting plastics, glass reinforced plastic(GRP), pre-sintered and pre-fired (green) materials, electro carbons, graphite, soft ferrites, farinaceous products, pc boards, and etc.

Features: For they have very high concentrated diamonds rigidly bonded on the surface by nickel alloy and the diamond particles protrude from the bond. The nickel bond electroplated diamond cutting discs are particularly suitable for beginning cutting operation.

Specification

ITEM DIAMETER HOLE DIAMETER(MM) FLANG(OPTIONAL) BLANK THICKNESS(MM) RETURN(MM)
INCHES MM
SDEB-04 4'' 100   / 0.6-1.2 3
20/22.23 50mmx22.23mm,M14 1.3-1.5 3
SDEB-45 4.5'' 115   / 0.8-1.2 3
20/22.23 50mmx22.23mm,M14 1.3-1.5 3
SDEB-05 5'' 125   / 0.8-1.2 3
20/22.23 50mmx22.23mm,M14 1.3-1.5 3
SDEB-06 6'' 150   / 1-1.2 3
20/22.23 50mmx22.23mm,M14 1.3-1.5 3
SDEB-07 7'' 180   / 1.4-1.6 4
22.23 70mmx22.23mm 1.4-1.6 4
SDEB-08 8'' 200   / 1.6-2.2 4
22.23 70mmx22.23mm 1.6-2.2 4
SDEB-09 9'' 230   / 1.6-2.2 4
22.23/25.4 70mmx22.23mm 1.6-2.2 4
SDEB-10 10'' 250 25.4/30/35 N/A 1.8-2.5 5
SDEB-12 12'' 300 22.23/25.4 N/A 1.8-3 5
SDEB-14 14'' 350 25.4/30/35 N/A 1.8-3 5
SDEB-16 16'' 400 22.23/25.4 N/A 1.8-3 5

 GRIT SIZE:#40/#60, other design and specifications can be customized.
