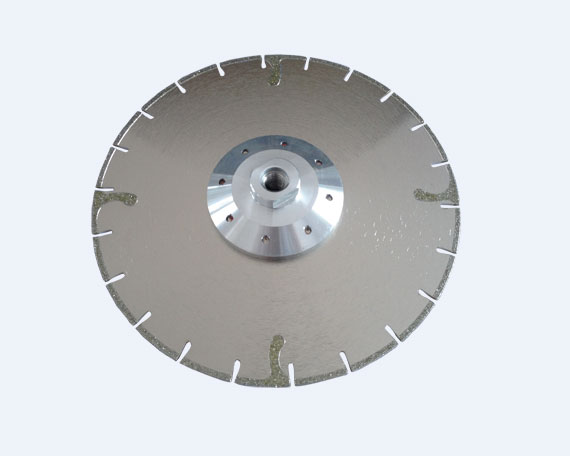

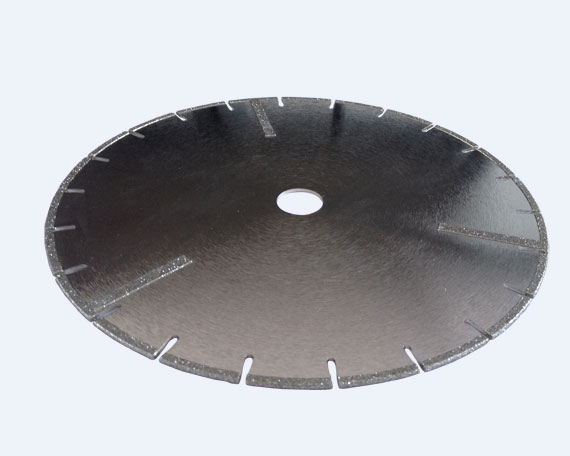

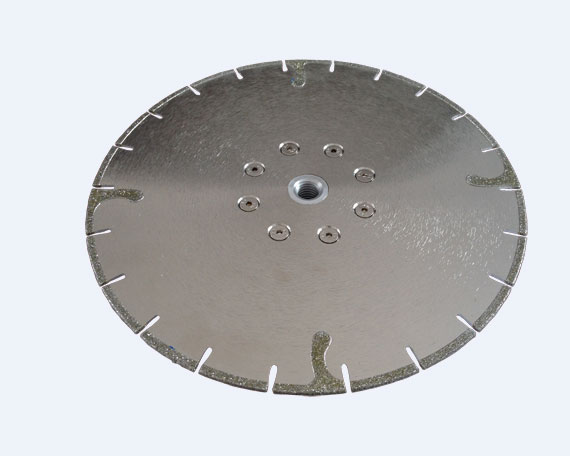

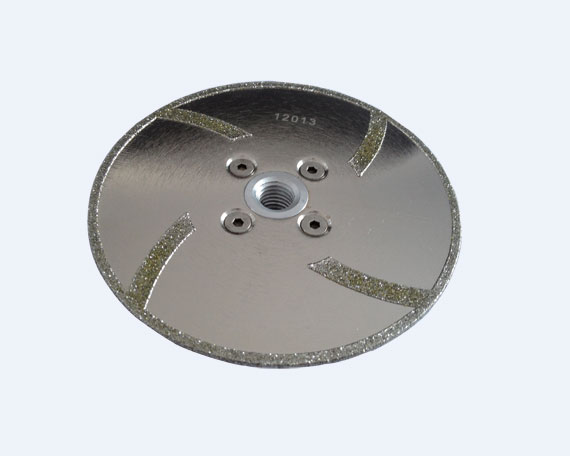

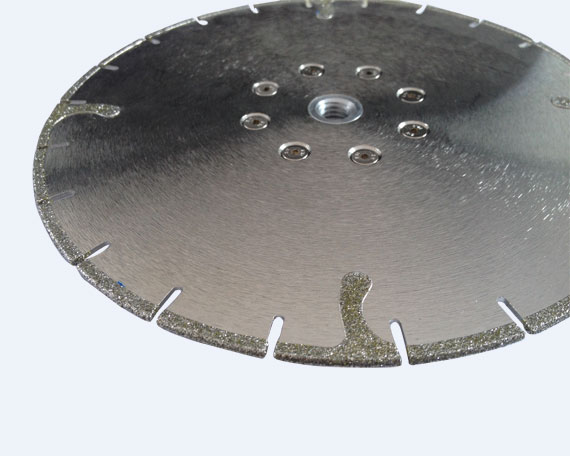

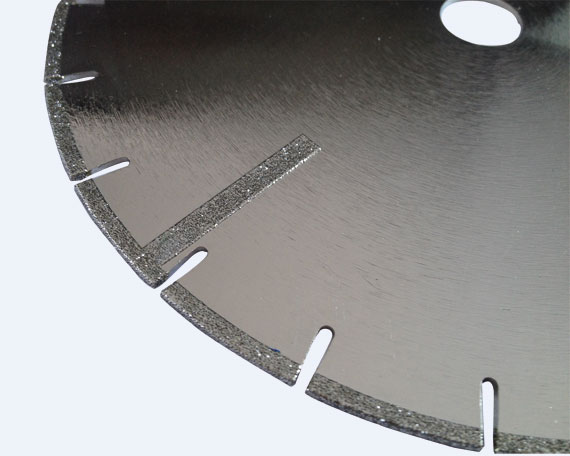

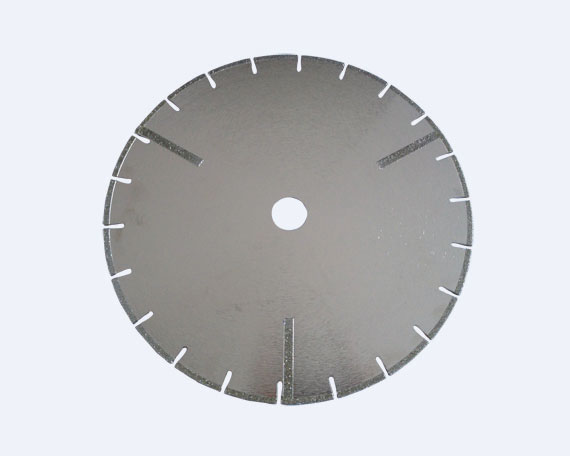

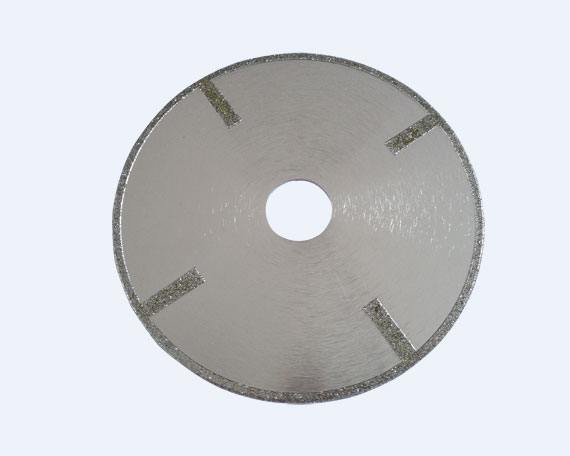

Electroplated Diamond Saw Blade With Protection Teeth - Electroplated Saw Blades

Application: For cutting various materials, like marble, granite, sandstone, ceramic, thermosetting plastics, glass reinforced plastic(GRP), pre-sintered and pre-fired (green) materials, electro carbons, graphite, soft ferrites, farinaceous products, pc boards, and etc.

Features: For they have very high concentrated diamonds rigidly bonded on the surface by nickel alloy and the diamond particles protrude from the bond. The nickel bond electroplated diamond cutting discs are particularly suitable for beginning cutting operation

Specification

ITEM	DIAMETER		HOLE DIAMETER(MM)	FLANG(OPTIONAL)	BLANK THICKNESS(MM)	RETURN(MM)
ITEM	INCHES	MM	HOLE DIAMETER(MM)	FLANG(OPTIONAL)	BLANK THICKNESS(MM)	RETURN(MM)
SDEB-04	4''	100		/	0.6-1.2	3
SDEB-04	4''	100	20/22.23	50mmx22.23mm,M14	1.3-1.5	3
SDEB-45	4.5''	115		/	0.8-1.2	3
SDEB-45	4.5''	115	20/22.23	50mmx22.23mm,M14	1.3-1.5	3
SDEB-05	5''	125		/	0.8-1.2	3
SDEB-05	5''	125	20/22.23	50mmx22.23mm,M14	1.3-1.5	3
SDEB-06	6''	150		/	1-1.2	3
SDEB-06	6''	150	20/22.23	50mmx22.23mm,M14	1.3-1.5	3
SDEB-07	7''	180		/	1.4-1.6	4
SDEB-07	7''	180	22.23	70mmx22.23mm	1.4-1.6	4
SDEB-08	8''	200		/	1.6-2.2	4
SDEB-08	8''	200	22.23	70mmx22.23mm	1.6-2.2	4
SDEB-09	9''	230		/	1.6-2.2	4
SDEB-09	9''	230	22.23/25.4	70mmx22.23mm	1.6-2.2	4
SDEB-10	10''	250	25.4/30/35	N/A	1.8-2.5	5
SDEB-12	12''	300	22.23/25.4	N/A	1.8-3	5
SDEB-14	14''	350	25.4/30/35	N/A	1.8-3	5
SDEB-16	16''	400	22.23/25.4	N/A	1.8-3	5

GRIT SIZE:#40/#60, other design and specifications can be customized.
