Diamond Arrayed Saw Blades

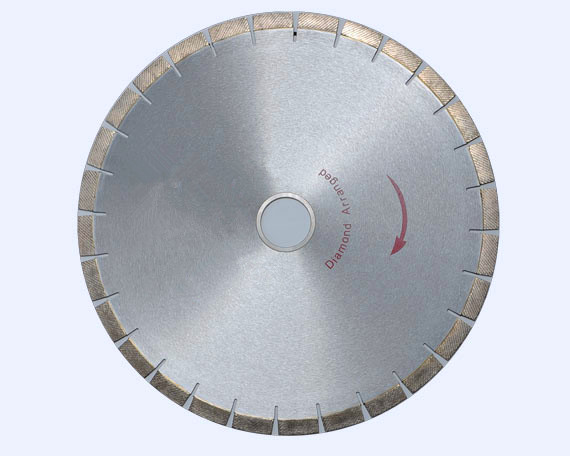

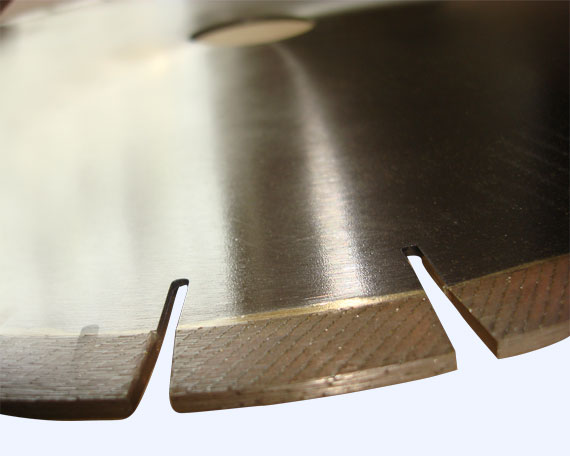

Diamond Arranged Saw Blade For Granite

Features:

1.High frequency welded or laser welded
2.30% more sharpener & more than 20% extended working life
3.Lower cost with internati
onal standard
4.Less noise & electricity
5.Unprecedented joyful cutting experience
6.Customized & volume production
7.Silent type is also available

Description
Application:  professionally for granite cutting

Specification


Type Dia. (mm) Segment height (mm) Abor (mm) Welded method
SD-ARGB-12 300mm 8/10/12/15/18 50/60 High frequency welded & Laser welded
SD-ARGB-14 350mm 8/10/12/15/18 50/60
SD-ARGB-16 400mm 8/10/12/15/18 50/60
SD-ARGB-18 450mm 8/10/12/15/18 50/60
SD-ARGB-20 500mm 8/10/12/15/18 50/60
SD-ARGB-22 550mm 8/10/12/15/18 50/60
SD-ARGB-24 600mm 8/10/12/15/18 50/60/80
SD-ARGB-26 650mm 8/10/12/15/18 50/60/80
SD-ARGB -28 700mm 8/10/12/15/18 50/60/80
SD-ARGB -30 750mm 8/10/12/15/18 50/60/80
SD-ARGB -32 800mm 8/10/12/15/18 50/60/80/100
SD-ARGB-34 850mm 8/10/12/15/18 50/60/80/100
SD-ARGB-36 900mm 8/10/12/15/18 50/60/80/100
SD-ARGB -40 1000mm 8/10/12/15/18 50/60/80/100
SD-ARGB -44 1100mm 8/10/12/15/18 50/60/80/100
SD-ARGB -48 1200mm 8/10/12/15/18 50/60/80/100

Note: please inform us which machine do you use below upon order.
A.  Hand-held saw and small power machines
B.  15 - 35 HP machines
C.  35 - 65 HP machines
D.  65 - 72 HP machines
