Core Drill Machine

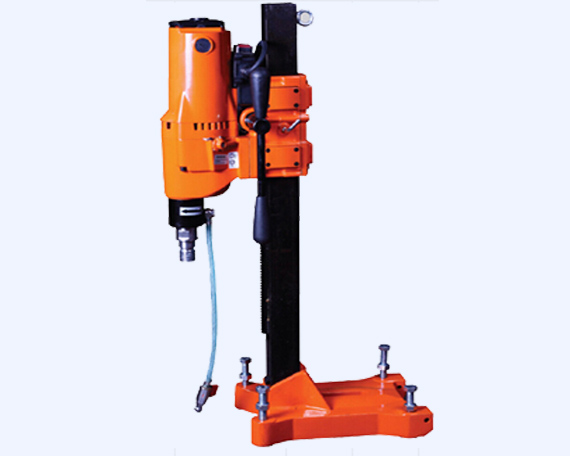

ZIZ-CF02-255C Table Core Drill Machine

Features:

1.Electric leakage protection
2. Replaceable Stand options can provide further functions such as angle and stitch drilling

Description
Application:
   1. For core drilling in walls, floors, roofs and road surface, up to 80 mm
   2. Suitable for various materials such as reinforced concrete. brick and other construction materials
   3. For deep pole drilling, plumbing, electrical installation etc.
   4. Different drilling speed version for appropriate situations
Specification:
Model code ZIZ-CF02-255C
Collet size 255mm(for concrete)
Input power 　2600w
Rated voltage 　110/220/240V
Frequency 　50Hz
No load speed 480/900 r/min
Package Size 107×37×43.3cm
Pcs/Carton 1 pcs
N.W/G.W 30/40KG
