Tuck Point Blade/Crack Chaser

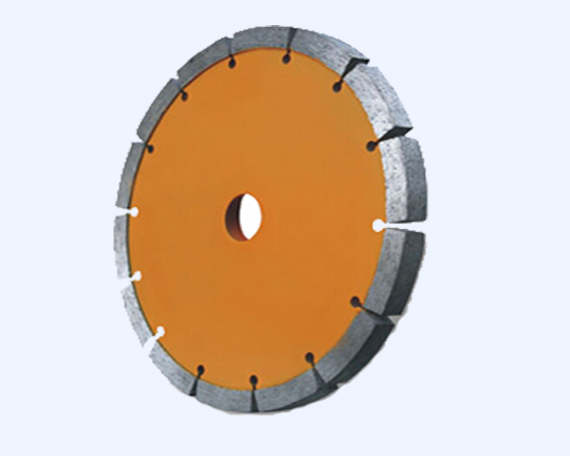

Flat Segmented Tuck Point Blade

Features:

1.Diameter: 4”-9”
2.Good cutting performance

Description
Application:
     1.The wide segments are specially designed for mortared expansion joints and slotting granite, marble, concrete, etc.
     2.These blades provide fast & easy removal of grouted or mortared joint material.
     3.The blade with tungsten carbide inserts provide superior cutting performance and greatly extended service life.

Machinery: Angle grinder, tuck pointer

Specification:
Item No. Out  Diameter Bore Diameter (MM) Segment Width (MM) Segment Height (MM)
MM INCH
STPB-04 105 4” 22.23 6.4 7/10
STPB-45 115 4.5” 22.23 6.4 7/10
STPB-05 125 5” 22.23 6.4 7/10
STPB-06 150 6” 22.23 6.4 7/10
STPB-07 180 7” 22.23 6.4 7/10
STPB-09 230 9” 22.23 6.4 7/10
different abor sizes and segment specifications are available upon request.
